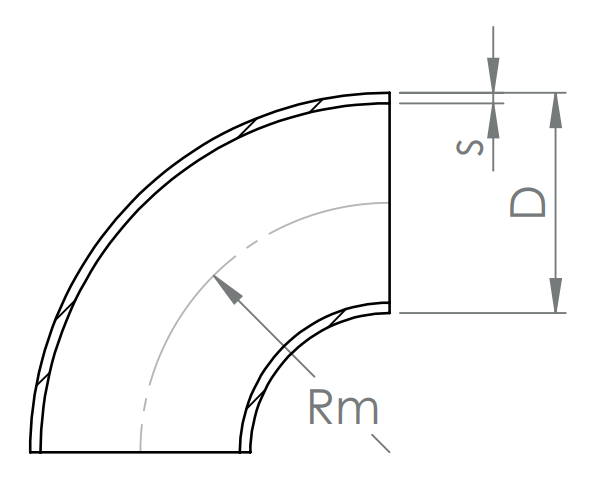

Schweißbogen 90°, Bauart 3, zum Anschweißen ans Rohr, Material: Edelstahl V2A (1.4301) / Edelstahl V4A (1.4401/04) Obefläche geschliffen Korn 240
Technische Daten
| Durchmesser / Wandstärke | Radius | Werkstoff |
|---|---|---|

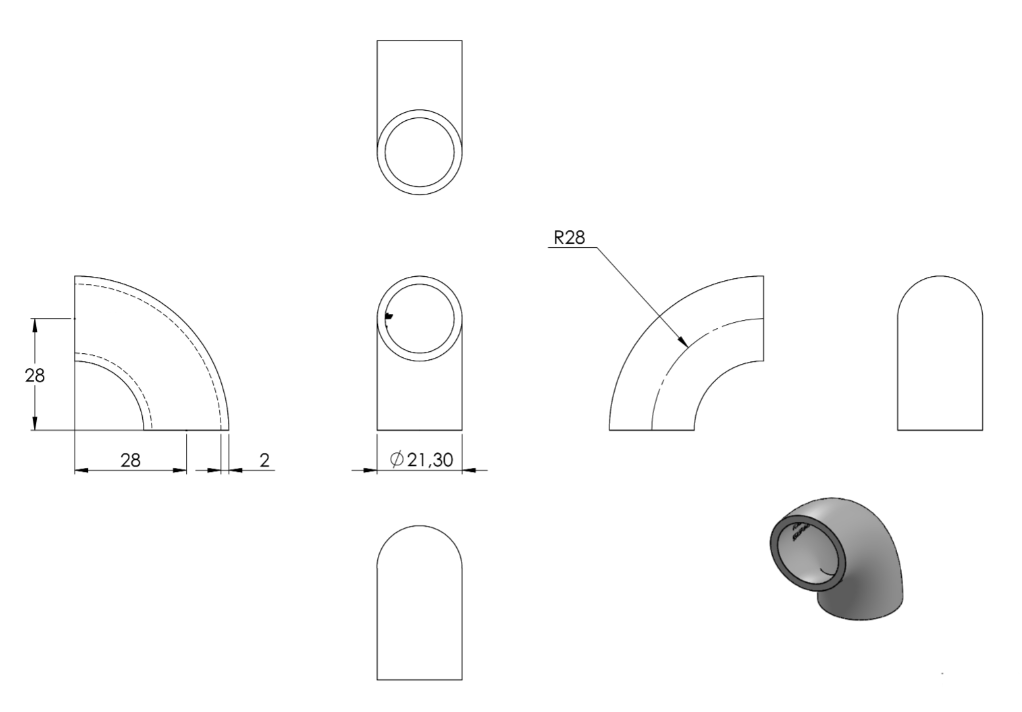

| 21,3 x 2,0 mm | 28 mm | V2A (1.4301) |
| 25,0 x 2,0 mm | 27,5 mm | V2A (1.4301) |
| 26,9 x 2,0 mm | 29 mm | V2A (1.4301) |
| 30,0 x 2,0 mm | 33,5 mm | V2A (1.4301) |
| 33,7 x 2,0 mm | 38 mm | V2A (1.4301) |
| 33,7 x 2,6 mm | 38 mm | V2A (1.4301) |
| 40,0 x 2,0 mm | 45 mm | V2A (1.4301) |
| 42,4 x 2,0 mm | 48 mm | V2A (1.4301) |
| 42,4 x 2,6 mm | 48 mm | V2A (1.4301) |
| 42,4 x 3,2 mm | 48 mm | V2A (1.4301) |
| 48,3 x 2,0 mm | 57 mm | V2A (1.4301) |
| 48,3 x 2,6 mm | 57 mm | V2A (1.4301) |
| 60,3 x 2,0 mm | 76 mm | V2A (1.4301) |
| 60,3 x 2,6 mm | 76 mm | V2A (1.4301) |
| 76,1 x 2,6 mm | 95 mm | V2A (1.4301) |
| 33,7 x 2,0 mm | 38 mm | V4A (1.4401/04) |
| 42,4 x 2,0 mm | 48 mm | V4A (1.4401/04) |
| 48,3 x 2,0 mm | 57 mm | V4A (1.4401/04) |
