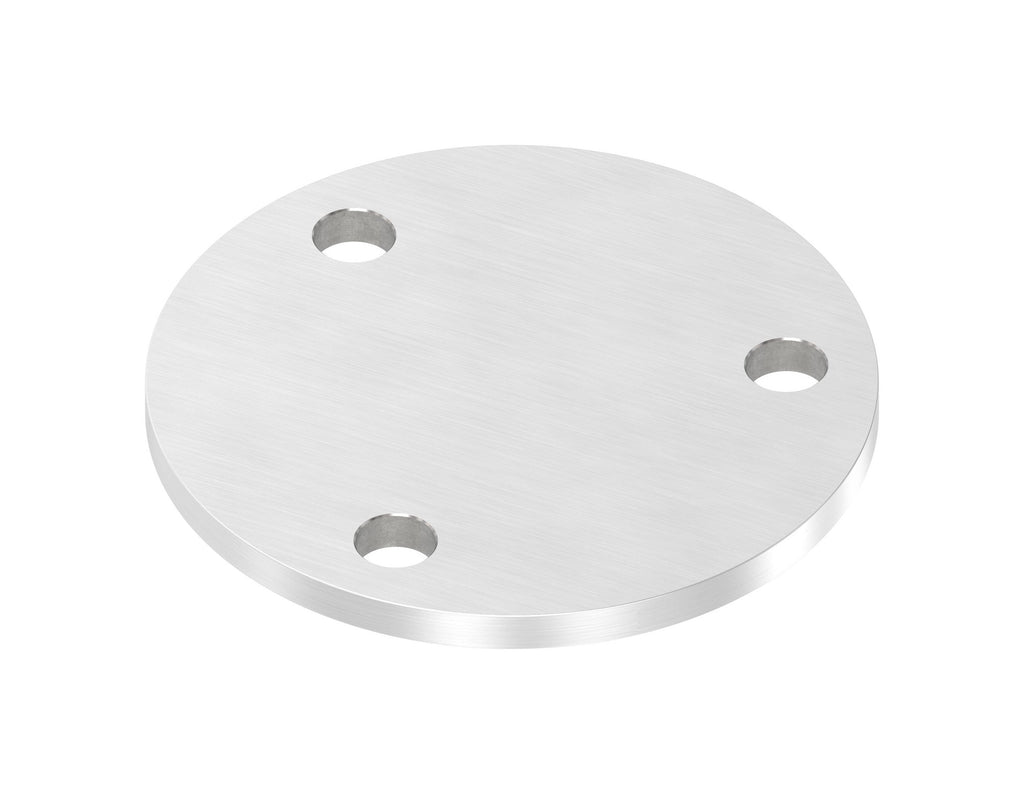

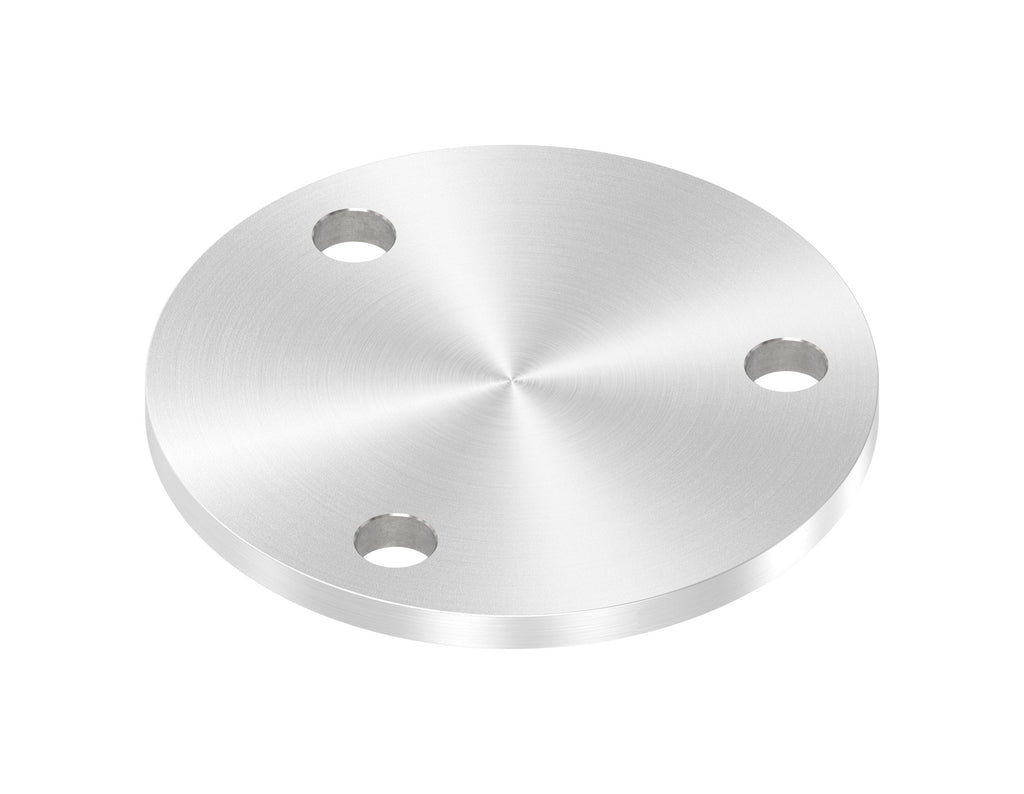

Ankerplatte mit 3 Bohrungen, ohne Fase, Rundschliff oder Längsschliff, Material: Edelstahl V2A (1.4301) / Edelstahl V4A (1.4404/04) Oberfläche und Rand geschliffen Korn 240
Technische Daten

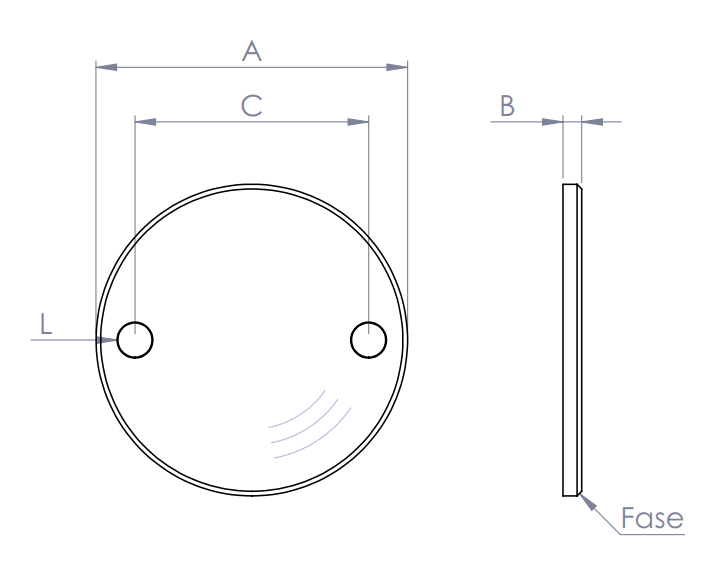

| Durchmesser (A) x Stärke (B) | Durchmesser Bohrung (L) | Abmessung C / (Lochabstand) | Rundschliff | Längsschliff | Werkstoff |
|---|---|---|---|---|---|

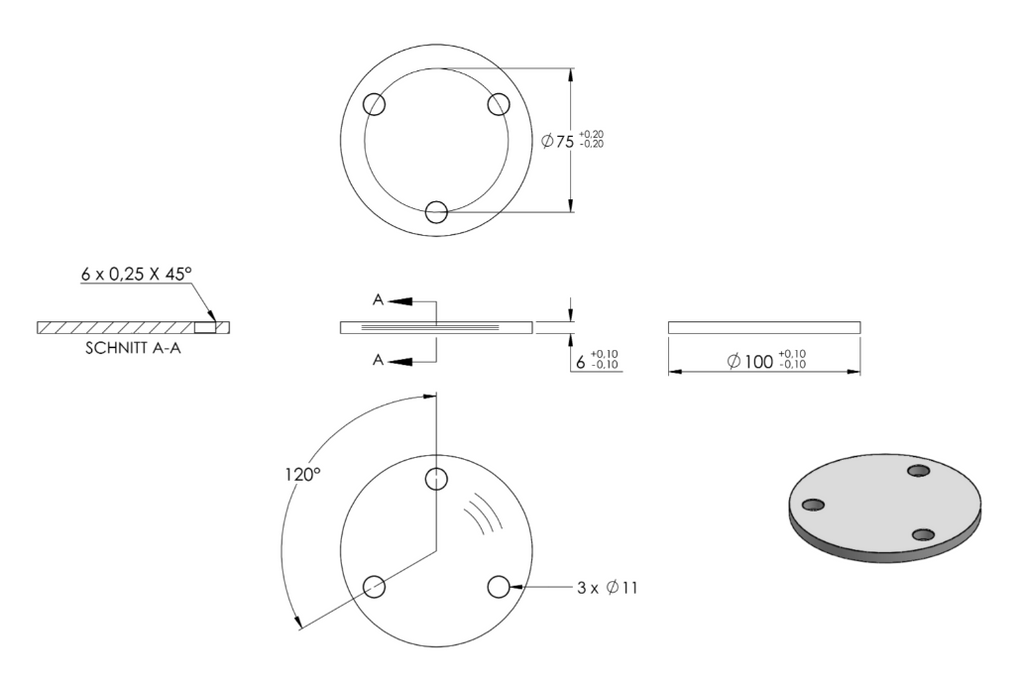

| 100 x 6 mm | 11 mm | 75 mm | ✔ | ✔ | V2A (1.4301) |
| 100 x 6 mm | 13 mm | 75 mm | ✔ | ✔ | V2A (1.4301) |
| 100 x 8 mm | 13 mm | 75 mm | ✔ | ✔ | V2A (1.4301) |
| 100 x 10 mm | 13 mm | 75 mm | ✔ | x | V2A (1.4301) |
| 120 x 6 mm | 13 mm | 90 mm | ✔ | ✔ | V2A (1.4301) |
| 120 x 8 mm | 13 mm | 90 mm | ✔ | ✔ | V2A (1.4301) |
| 120 x 10 mm | 13 mm | 90 mm | ✔ | ✔ | V2A (1.4301) |
| 140 x 6 mm | 13 mm | 110 mm | ✔ | x | V2A (1.4301) |
| 140 x 8 mm | 13 mm | 110 mm | ✔ | x | V2A (1.4301) |
| 140 x 10 mm | 13 mm | 110 mm | ✔ | x | V2A (1.4301) |
| 100 x 6 mm | 11 mm | 75 mm | x | ✔ | V4A (1.4401/04) |
| 120 x 6 mm | 13 mm | 90 mm | x | ✔ | V4A (1.4401/04) |
